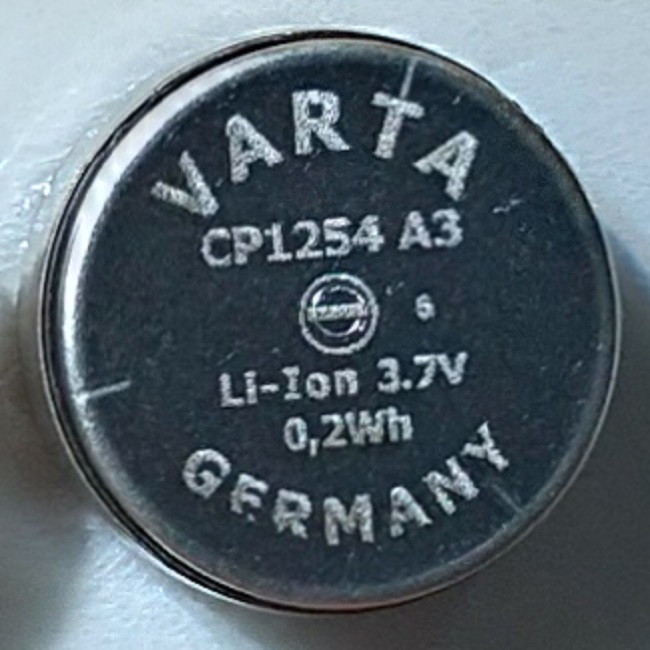

CP 1254

Normal Voltage : 3.7V

Typical Capacity : 63mA (at 0.2C from 4.2V to 3.0V at 20°C)

Diameter : 12.1 +0.0/-0.3 mm
Height : 5.4 +0.2/-0.1 mm
Weight. approx [g]: 1.6 +0.2/-0.2

Charge Voltage [V]: 4.20 ± 0.05

Initial Charge Current [mA] :Standard Charge: 30
                                              Fast Charge2: 60
                                              Rapid Charge3: 120

Safety UN 38.3 passed ( relevant tests acc. IEC 61233 passed)

Internal Approval
Overcharge Test (12V, 3C, 12h): Passed
Overcharge Test (5V, 1A, 12h): Passed
