WG7801-B0
Price:NT$ 430
Special Price:NT$ 430
Part Number:WG7801
Quantity:
Forum

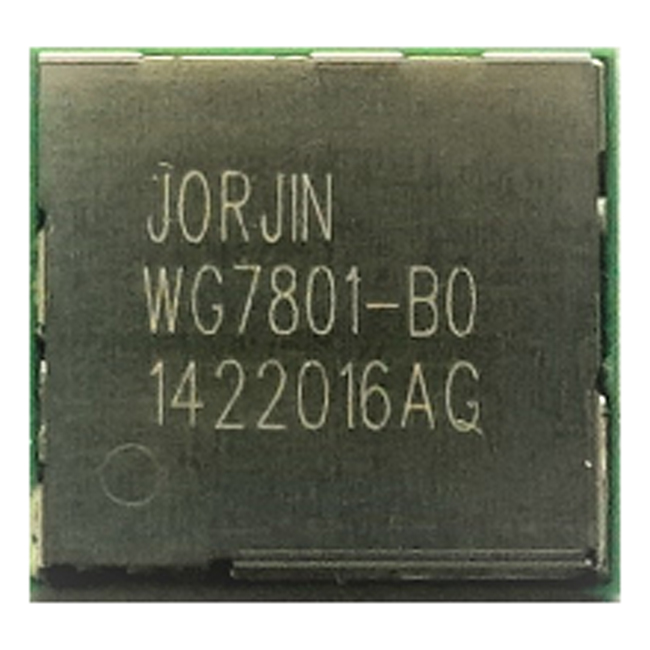

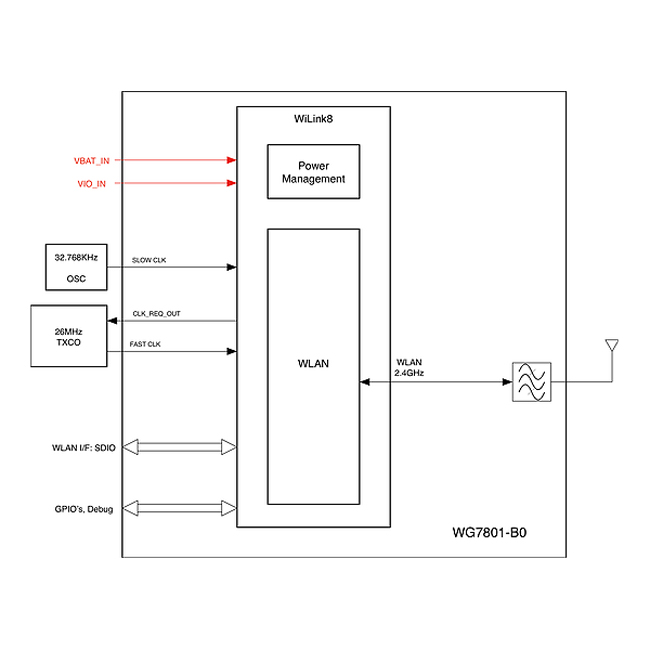

The Jorjin WG7801-B0 is a low cost 2.4GHz WLAN  system in package (SiP) module based on the WL1801 SoC from Texas Instruments.

It contains a  power amplifier, Tx filter as well as the necessary passive components to fully implement the 802.11b,g,n WiFi functions.

The WG7801-B0 WLAN is connected to the host processor via a 1.8V SDIO interface.

Linux and Android drivers are provided for a wide range of application processors, with WinCE and Windows Mobile drivers available from our partner network.

Jorjin can supply a suitable 2.4GHz chip antenna for the WG7801-B0 and can provide complete design services including a  full design review and FCC/CE certification.

  • 2.4GHz WLAN (b,g,n)
  • External crystal oscillator / TCXO
  • Dimension 12.8mm(L) x 12mm(W) x 1.7mm(H).
  • Based on TI Wilink8 45-nm CMOS technology.
  • Seamless integration with TI Sitara and other application processors.
  • Pin compatible with Jorjin WG7831-B0 and WG7871-BN.
  • -40C to +85C operation.
  • Supplied on 1800 pieces tape and reel.
Date
Solution file name
2019-06-12
WG7801-B0-DTS-R04_20151117
1.68 MB
2019-06-12
HW Platform and OS Support Note For WG78xx module
0.34 MB
