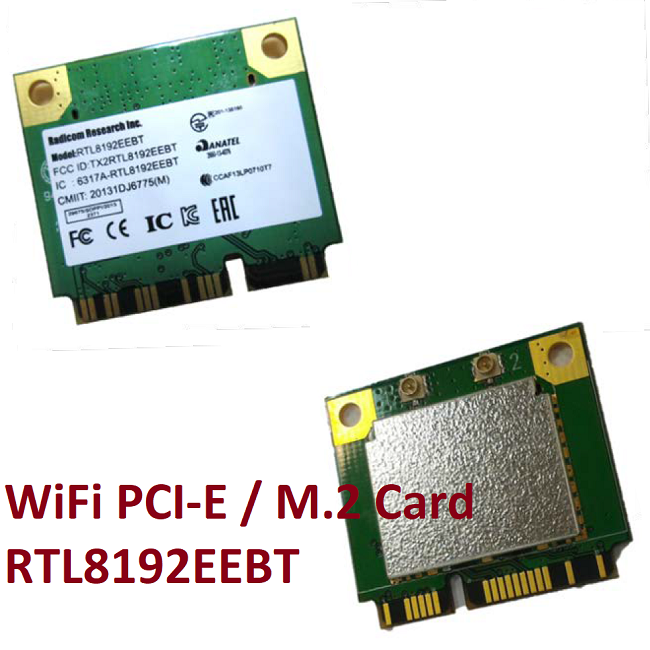

RTL8192EEBT
M2 and PCIe Module series

Features
• Operates in 2.4GHz frequency range
• PHY data rate up to144.4Mbps using 20MHz bandwidth, 300Mbps using 40MHz bandwidth
• Frame aggregation
• MIMO power saving mechanism
• Compatible with 802.11b/g/n
• Compiles with IEEE802.11n data rates
• 20MHz and 40MHz bandwidth transmission
• Wake-on-WLAN
• Hardware antenna diversity
• Channel management and co-existence
• Multiple BSSID feature allows multiple MAC identities when used as a wireless bridge
• DSSS with DBPSK and DQPSK, CCK modulation with long and short preamble
• OFDM with BPSK, QPSK, 16QAM and 64QAM modulation
• 2T2R
• Support STBC, LDPC, MRC, and transmit Beamforming (TxBF)
• Transmit Opportunity(TXOP) Short Inter-Frame Space(SIFS) bursting for higher multimedia
bandwidth
• Compiles with PCI Express Base Specification Rev1.1
• Fast receiver Automatic Gain Control (AGC)
• Short Guard Interval (400ns)
• Sounding packet
• Selectable digital transmit and receive FIR filters
• Low latency immediate High-Throughput Block Acknowledgement(HT-BA)

Approvals
• FCC: add SAR 5mm and SAR 8mm
• TELEC, Austria/NZ, SRRC, India, KC, Indonesia, Malaysia, Taiwan, Thailand, Vietnam, Jate,
CB, ANATEL etc.
Totally 136 countries
