RB8762CMF-x 低功率藍芽無線模組
- 32位高性能 Cortex MCU
- 程序存储器: 嵌入式4MB Flash
- 內建32.768KHz晶振(也可以外掛)
- 带有智能PMU的超低功耗
- 支持蓝牙4.2核心協議(包括security connection)
- 支持OTA编程机制的固件升级
- 支持GAP，ATT/GATT，SMP，L2CAP
- BT5.0 mesh SDK

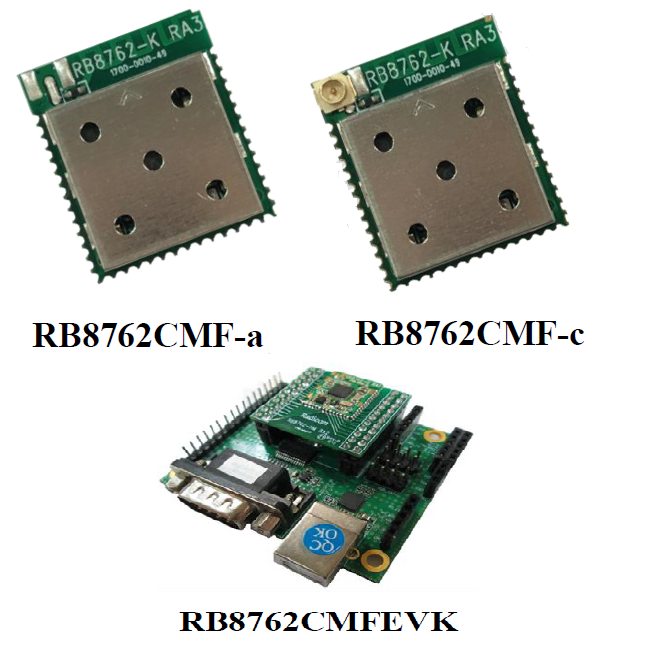

RB8762CMF-x
- Support bluetooth 5.0 core specification
- Integrate MCU execute Bluetooth protool stack
- Support BT5.0 Mesh function
- Support both Master and Slave modes
- Integrated bluetooth low energy stack including ATT,GATT, SMP,L2CAP, GAP
- Support OTA (over-the-air) programming
- Firmware upgradeable through serial port
- Support Internal 32KHz OSC or external 32KHz clock input for low power mode
- Low operation power : 3.3V
- TX power 4.0dBm Max ~ RX sensitivity : -97dBm Min
- 15 GPIOs , 3 configurable LED pins
- Embedded 4MB flash
- Embedded G-sensor
- Support AES 128/192/256 encrypt / decrypt engine
- Serial Interface (SPI/I2C/PWM)
- Watch Dog Timer
- On-board antenna or U.FL connector for external antenna
- Operating temperature: 0°C~ +70°C
