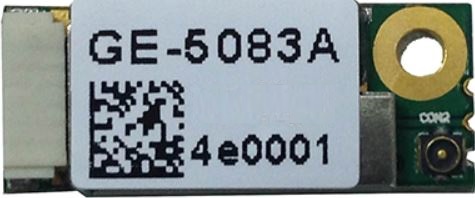

GE-5083/GE-5084, Ultra-High Performance Tiny GNSS Engine Board

GE-5083 (GPS+Glonass)

GE-5084 (GPS+Beidou)



  • Multi-satellite positioning systems support

           GPS/QZSS/GLONASS (GE-5083)

           GPS/QZSS/Beidou (GE-5084)

  • SBAS (WAAS, EGNOS, MSAS, GAGAN) support
  • High performance: -165dBm tracking sensitivity
  • Low power: 22 mA at continuous tracking
  • Tiny & low profile – including connectors

           8 (width) x 20 (length) x 2.7 (height) (mm)

  • Built-in RF connector, reduce RF tuning efforts

           Flexible antenna installation

  • Built-in digital connector: flexible module installation
  • Screw hole for fixing & performance enhancement
  • External active antenna short circuit protection
  • Backup power for faster position fix.
  • 12 multi-tone active interference cancellers
  • Indoor/outdoor multi-path detection & compensation
  • Up to 10Hz update rate1
  • High accuracy 1PPS timing (10ns jitter)
  • Self-Generated Orbit Prediction (EASY) 1
  • AGPS support
  • Fully EMI shielded
  • Industrial operating temperature range: -40 ~ 85℃
