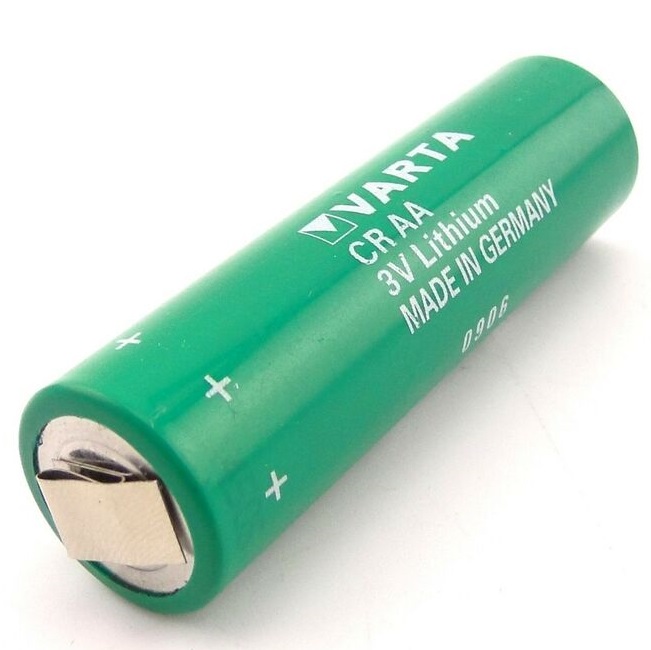

CR 17450

Designation IEC ……………………….. CR 17450

System …………………………….…….. Li-Manganese dioxide / Organic Electrolyte

UL Recognition.…………………………MH13654

Nominal Voltage ……………………….. 3 V

Typical Capacity C ……………….……. 2400 mAh

(current 1mA , at 20°C down to 2V)

Maximum cont. Discharge……………. 1000,A

Maximum Pulse Discharge…………… 3000mA

Weight (approx.) …………………………23 g

Temperature Ranges

Storage …………………………………… -20°C ~ 45°C

Discharge …………………………………-40°C ~ 70°C*

Dimensions

Diameter (A) ...…………………………….16.7 +/- 0.3mm

Height (B) ………………………………… 44.5 +/- 0.5mm

Shoulder Diameter[L]…………………….. 6.3 +/- 0.1mm

Shoulder Height [M]………………………. 1.25+/- 0.2mm

Typical Capacities (at 20°C)

Self-discharge rate < 1% at room temperature

Storage life > 10 years

Operating life* > 10 years

* depending on environmental conditions and energy consumption
