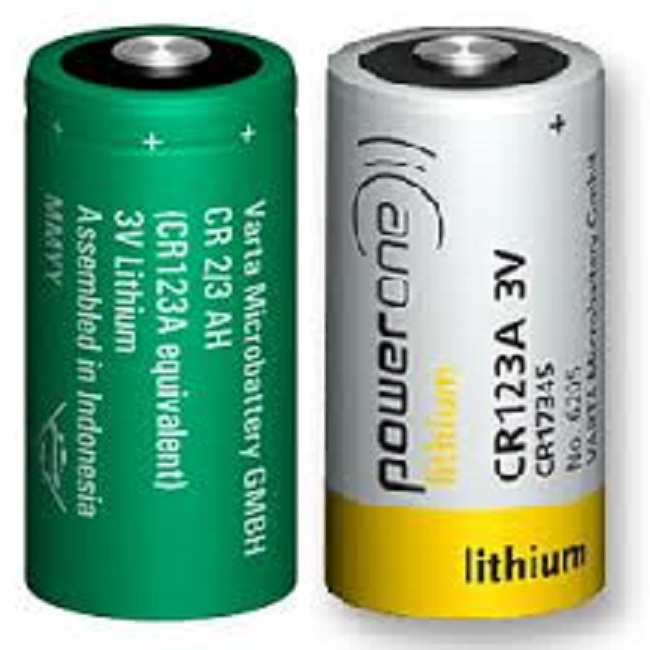

CR 123A

Designation IEC ……………………….. CR 17345

System …………………………….…….. Li-Manganese dioxide / Organic Electrolyte

UL Recognition.…………………………MH 13654 (N)

Nominal Voltage ……………………….. 3 V

Typical Capacity C ……………….……. 1550 mAh

(Load 100 Ohm, at 20°C down to 2V)

Weight (approx.) …………………………17 g

Temperature Ranges

Storage …………………………………… -20°C ~ 45°C

Discharge …………………………………-40°C ~ 70°C*

Dimensions

Diameter (A) ...…………………………….16.7 +/- 0.3mm

Height (B) ………………………………… 34.4 +/- 0.1mm

Shoulder Diameter[L]…………………….. 6.3 +/- 0.1mm

Shoulder Height [M]………………………. 1.2+/- 0.2mm

Typical Capacities (at 20°C)

Self-discharge rate < 1% at room temperature

Storage life > 10 years

Operating life* > 10 years

* depending on environmental conditions and energy consumption
