Quallink Wifi Products

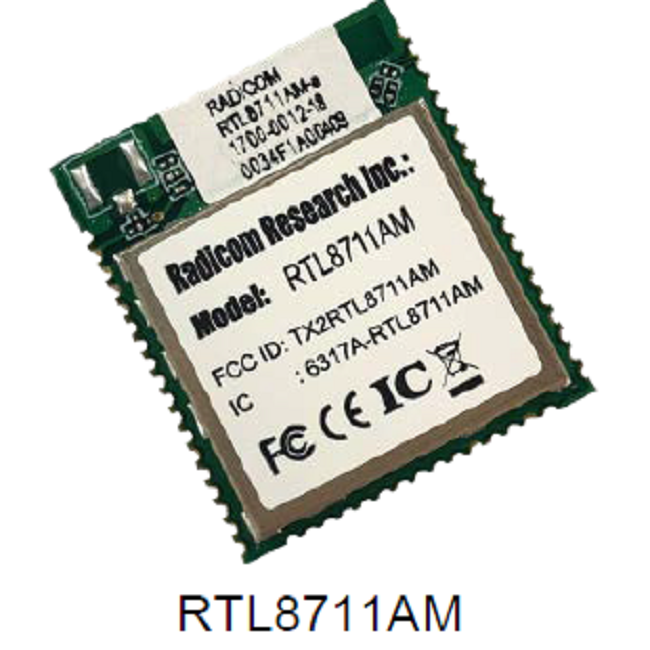

RTL8711AM Series
Embedded WiFi Serial Modules

Features
• Interfaces: UART, SPI, I2S, I2C, PCM, ADC, DAC, PWM
• IEEE 802.11b/g/n compatible WLAN
• IEEE 802.11e QoS Enhancement (WMM)
• IEEE 802.11h TPC, Spectrum Measurement
• IEEE 802.11i (WPA, WPA2), Open, shared key, and pair-wise key authentication service
• HTTPS/SSL, TCP/UDP, ARP, ICMP
• Built in RTOS
• mDNS
• WiFi WPS support
• 1T1R
• 20MHz and 40MHz bandwidth transmission
• Maximum 21 GPIO pins available
• NFC support
• RTOS and TCP/IP support
• Configurable through AT commands
• Low power 3.3V operation
• Extended operating temperature
• Small size: RTL8711AM SMD module = 0.96" x 0.75" x 0.09" [24.3 x 19.0 x 2.4m]
RTL8711AM-HM dip module = 1.8" x 1.22" x 0.35" [46.0 x 31.0 x 8.9mm]
• Supports WiFi Client (Station) and Host (Access Point) modes
• No powerful host processor required
• Custom I/O available to meet OEM requirements
• Firmware upgradeable through serial port
• Supports power saving mode
• Integrated ARM Cortex-M3 processor and on chip memory for complete WLAN subsystem functionality
• OTA over the air programming

Approvals
• RoHS Compliant
• FCC/IC/CE, TELEC, KC, SRRC, CB, AS/NZS
